Optimized Performance, Progressive Step Screening and Solids Separation Solution

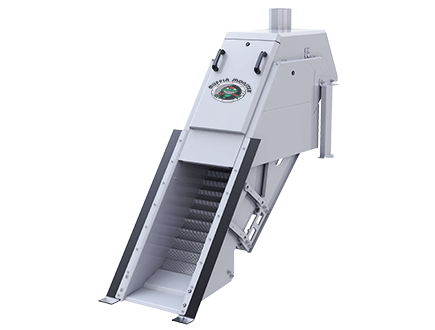

The MevaScreen® RSM Monster is a progressive step, self-cleaning fine screen for facilities with high screening loads or difficult operating conditions. The unique design offers a high degree of solids separation, sand and grit blockage mitigation, ease of maintenance and can be customized to the specific application. Ideal to protect downstream equipment for sewage and industrial water treatment.

Ask an Expert

Benefits

  • Progressive motion ensures uniform slot width over entire screening surface, minimizing water in rush
  • Patented pulse operation for fewer running hours, reduced energy consumption and less mechanical wear
  • Covered lower bars minimize solids pass-through, eliminating risk of blockage by sand, stones, etc.
  • Energy-efficient, low wear and ease of maintenance offer long product life

Features

  • Customizable system, fine screen with no rotating brushes or spray bars
  • Higher screenings capture and removal rate than traditional bar screens
  • Stainless and carbon steel construction
  • Designed for channel installations with widths up to 6.5 feet

Specifications

  • Inclination Angle: 45o
  • Slot Width: .02” – .24” (0.5 mm – 6 mm)
  • Standard Length Support Legs: 17.7” – 31.5” (450 mm – 800 mm)
  • Channel Width: 6.56’ (2,000 mm)
  • Discharge Height: 25.2” – 175.2” (640 mm – 4,450 mm)
  • Motor Power: 0.5 hp – 5.0 hp
  • Debris Removal Rate: > 80%­
